杠杆开关（拨轮）

  • 1501 阅读更多 Quick View

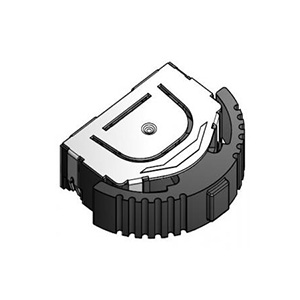

    1501

    Typical Specifications

    1.Rating : DC5V 10mA
    2.OutPut Voltage : 1V MIN AT 5V DC 1mA
    3.Contact Resistance : 100mΩMax.
    4.Travel & Angle
    *Travel : 0.85±0.2mm
    *Level Angle : 25˚MiN
    5.Operating Force
    *Lever Portion : 70±30gf
    *Push Portion : 200±100gf

  • 1501A 阅读更多 Quick View

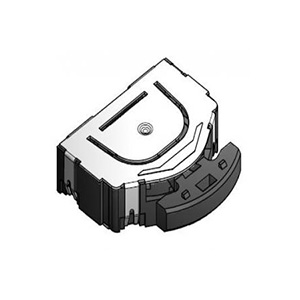

    1501A

    Typical Specifications

    1.Rating : DC5V 10mA
    2.OutPut Voltage : 1V MIN AT 5V DC 1mA
    3.Contact Resistance : 100mΩMax.
    4.Travel & Angle
    *Travel : 0.85±0.2mm
    *Level Angle : 25˚MiN
    5.Operating Force
    *Lever Portion : 70±30gf
    *Push Portion : 200±100gf

  • 1501B 阅读更多 Quick View

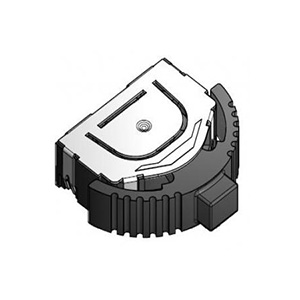

    1501B

    Typical Specifications

    1.Rating : DC5V 10mA
    2.OutPut Voltage : 1V MIN AT 5V DC 1mA
    3.Contact Resistance : 100mΩMax.
    4.Travel & Angle
    *Travel : 0.85±0.2mm
    *Level Angle : 25˚MiN
    5.Operating Force
    *Lever Portion : 70±30gf
    *Push Portion : 200±100gf

  • 1502 阅读更多 Quick View

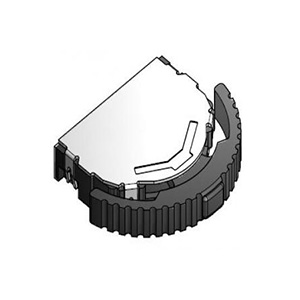

    1502

    Typical Specifications

    1.Rating : DC5V 10mA
    2.OutPut Voltage : 1V MIN AT 5V DC 1mA
    3.Contact Resistance : 100mΩMax.
    4.Travel & Angle
    *Travel : 0.9±0.2mm
    *Level Angle : 25˚MiN
    5.Operating Force
    *Lever Portion : 70±30gf
    *Push Portion : 200±100gf

  • 1502A 阅读更多 Quick View

    1502A

    Typical Specifications

    1.Rating : DC5V 10mA
    2.OutPut Voltage : 1V MIN AT 5V DC 1mA
    3.Contact Resistance : 100mΩMax.
    4.Travel & Angle
    *Travel : 0.9±0.2mm
    *Level Angle : 25˚MiN
    5.Operating Force
    *Lever Portion : 70±30gf
    *Push Portion : 200±100gf

  • 1503 阅读更多 Quick View

    1503

    Typical Specifications

    1.Rating : DC5V 10mA
    2.OutPut Voltage : 1V MIN AT 5V DC 1mA
    3.Contact Resistance : 100mΩMax.
    4.Travel & Angle
    *Travel : 0.85±0.2mm
    *Level Angle : 25˚MiN
    5.Operating Force
    *Lever Portion : 70±30gf
    *Push Portion : 200±100gf

  • 1503A 阅读更多 Quick View

    1503A

    Typical Specifications
    1.Rating : DC5V 10mA
    2.OutPut Voltage : 1V MIN AT 5V DC 1mA
    3.Contact Resistance : 100mΩMax.
    4.Travel & Angle
    *Travel : 0.85±0.2mm
    *Level Angle : 25˚MiN
    5.Operating Force
    *Lever Portion : 70±30gf
    *Push Portion : 200±100gf

  • 1503B 阅读更多 Quick View

    1503B

    Typical Specifications

    1.Rating : DC5V 10mA
    2.OutPut Voltage : 1V MIN AT 5V DC 1mA
    3.Contact Resistance : 100mΩMax.
    4.Travel & Angle
    *Travel : 0.85±0.2mm
    *Level Angle : 25˚MiN
    5.Operating Force
    *Lever Portion : 70±30gf
    *Push Portion : 200±100gf
