直拨插片类开关

阅读更多 Quick View

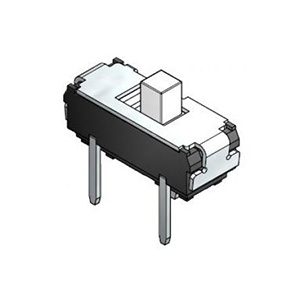

1235

Typical Specifications
1.Rating : DC6V 0.3A
2.Circuit : 1C – 2P
3.Timing : NON-SHORTING
4.Travel : 2.0±0.1mm
5.Contact Resistance : 70mΩMax.
6.Operating Force : 200±100gf
7.Operating Life : 10,000cycles
阅读更多 Quick View
1250

Typical Specifications
1.Rating : DC 6V, 0.3A
2.Circuit : 1C – 2P
3.Timing : NON-SHORTING
4.Travel : 2±0.1mm
5.Contact Resistance : 70mΩMax.
6.Operating Force : 200±100gf
7.Operating Life : 10,000cycles
阅读更多 Quick View

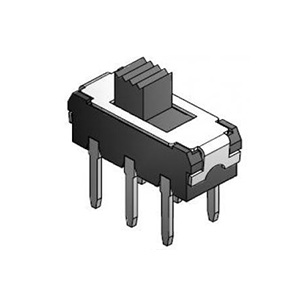

1336

Typical Specifications
1.Rating : DC6V 0.3A
2.Circuit : 1C – 3P
3.Timing : NON-SHORTING
4.Travel : 2.0±0.1mm
5.Contact Resistance : 70mΩMax.
6.Operating Force :
*A → B ← C = 250±100gf
*A ← B → C = 300±150gf
7.Operating Life : 10,000cycles
阅读更多 Quick View

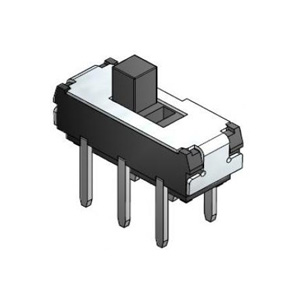

2235

Typical Specifications
1.Rating : DC6V 0.3A
2.Circuit : 2C – 2P
3.Timing : NON-SHORTING
4.Travel : 2.0±0.1mm
5.Contact Resistance : 70mΩMax.
6.Operating Force : 200±100gf
7.Operating Life : 10,000cycles
阅读更多 Quick View

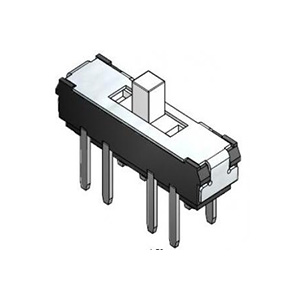

2336

Typical Specifications
1.Rating : DC6V 0.3A
2.Circuit : 2C – 3P
3.Timing : NON-SHORTING
4.Travel : 2.0±0.1mm
5.Contact Resistance : 70mΩMax.
6.Operating Force :
*A → B ← C = 250±100gf
*A ← B → C = 300±150gf
7.Operating Life : 10,000cycles
