卡座

卡座

1. Insulation Resistance : 100 ㏁
2. Contact Resistance : 30 mΩ Max (Par contact)
3. Current Capacity : 2A
4. Dielectric Strength : > 1000V AC
5. Life Time : 10,000 Cycles
6. Operating Temperature : -40℃ to 10℃
Product Withstanding Reflow Soldering

分类：

※ MATERIAL

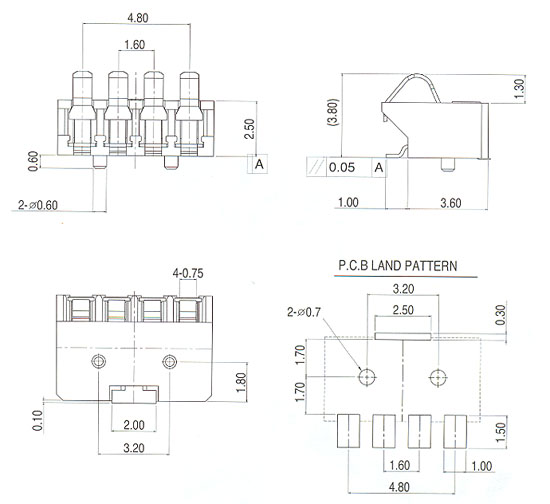

※ MECHANICAL DATA

※ ELECTRICAL DATA

※ SOLDERABILITY ACCORDING TO IEC 68.2.20





[ MATERIAL ]

  HOUSING(INSULATOR) PA 46 STANYL (UL94V-0)
  COLOR BLACK
  CONTACT TERMINAL BERYLLIUM COPPER
  CONTACT PLATE GOLD 0.15㎛ PLATED OVER NIKEL 2㎛ MIN SOLDERAREA TIN PLATED

[ ELECTRICAL DATA ]

  CARD CONTACTS
  INSULATION RESISTANCE > 10 ㏁
  TEST VOLTAGE 50 Hz
 * BETWEEN CARD CONTACTS > 1000 V rms
  BETWEEN CARD CONTACTS AND DETECTION CIRCUIT > 1000 V rms
  CURRENT
  * MIN 10 ㎂
 * MAX 1 A
  CONTACT RESISTANCE < 100 ㏁
 TEST VOLTAGE 50 Hz 500 V rms

[ SOLDERABILITY ACCORDING TO IEC 68.2.20  ]

  MANUAL 250 ℃ / 2 s
  WAVE 220 ℃ / 5 s
