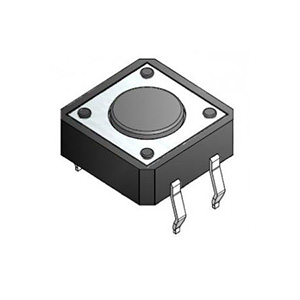

1102T

Typical Specifications

1. Rating : DC12V 50mA
2. Travel : 0.25±0.1mm
3. Contact Resistance : 100mΩMax.
4. Bounce : 10m SEC MAX.
5. Operating Force
* 1102T-0 : 100±30gf [80,000Cycle]
* 1102T-1 : 130±30gf [80,000Cycle]
* 1102T-2 : 160±50gf [80,000
