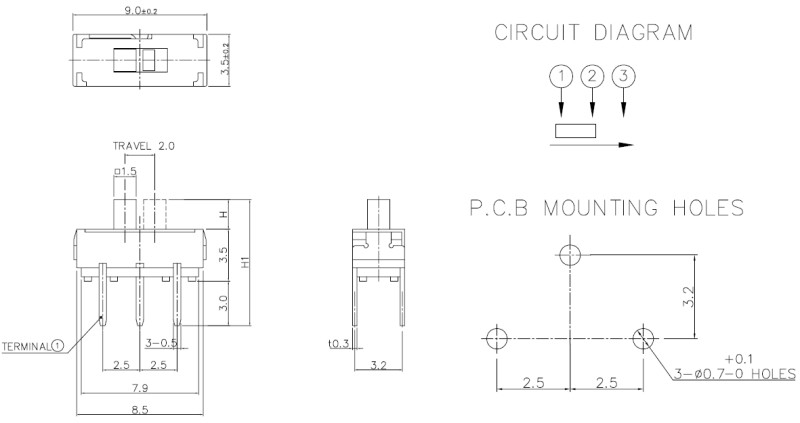

| Model | H(mm) / H1(mm) |
| 1235A | 2.0 / 8.5 |
| 1235B | 4.0 / 10/5 |
1235
Typical Specifications
1.Rating : DC6V 0.3A
2.Circuit : 1C – 2P
3.Timing : NON-SHORTING
4.Travel : 2.0±0.1mm
5.Contact Resistance : 70mΩMax.
6.Operating Force : 200±100gf
7.Operating Life : 10,000cycles
