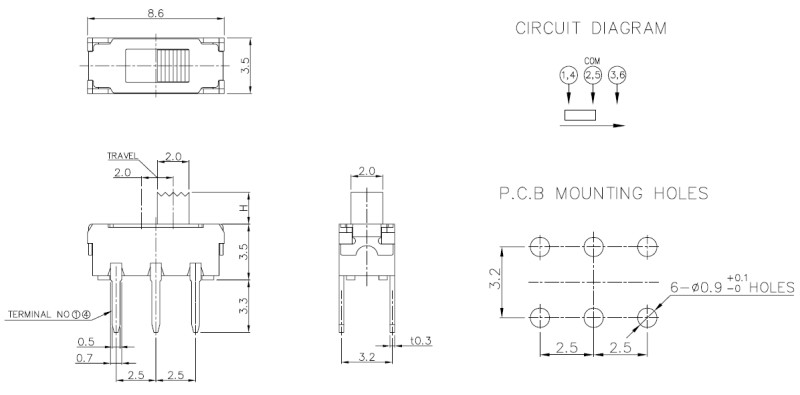

1250

Typical Specifications
1.Rating : DC 6V, 0.3A
2.Circuit : 1C – 2P
3.Timing : NON-SHORTING
4.Travel : 2±0.1mm
5.Contact Resistance : 70mΩMax.
6.Operating Force : 200±100gf
7.Operating Life : 10,000cycles
