1300

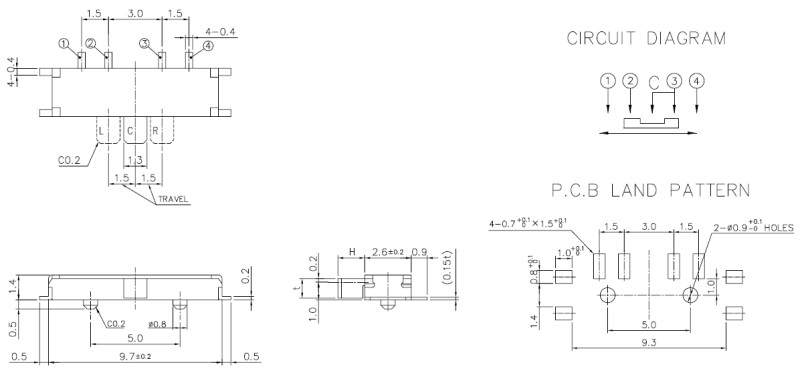

Typical Specifications
1.Rating : DC4V 0.3A
2.Circuit : 1C – 3P
3.Timing : NON-SHORTING
4.Travel : 1.5±0.1mm
5.Contact Resistance : 70mΩMax.
6.Operating Force :
* L → C ← R : 200±150gf
* L ← C → R : 150±150gf
7.Operating Life : 10,000cycles
