1380

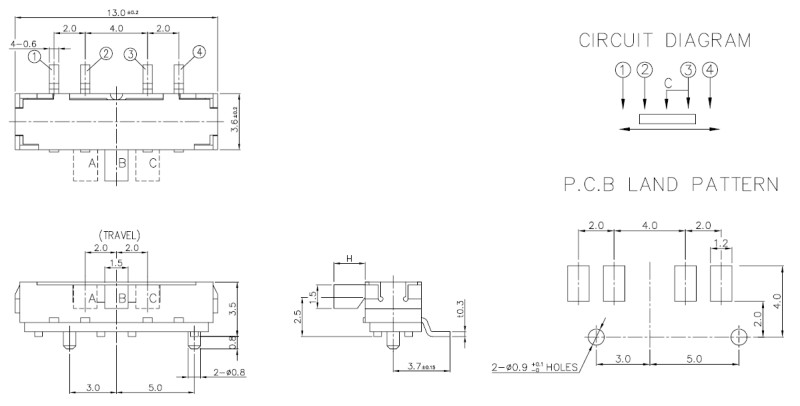

Typical Specifications
1.Rating : DC6V 0.3A
2.Circuit : 1C – 3P
3.Timing : NON-SHORTING
4.Travel : 2.0±0.1mm
5.Contact Resistance : 70mΩMax.
6.Operating Force :
*A → b ← C : 250±100gf
*A ← B → C : 300±150gf
7.Operating Life : 10,000cycles
