| Model | Stroke |
| 2256A | Full 3.5 Lock 2.5 |
| 2256B | Full 1.5 Lock 2.5 |

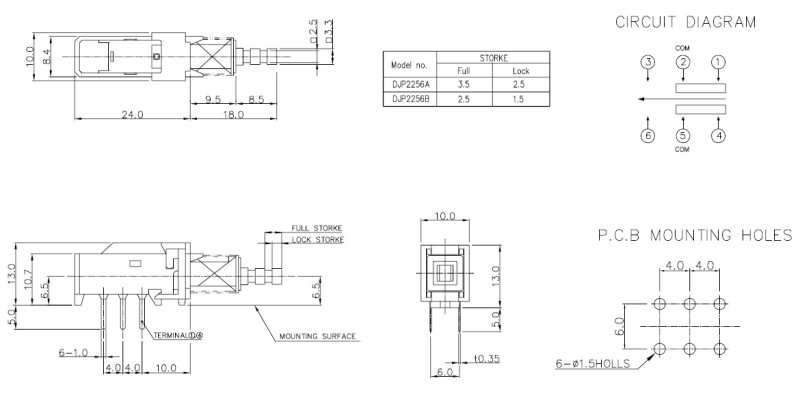

2256
Typical Specifications
1.Rating : DC25V 1A
2.Circuit : 2C – 2P
3.Contact Resistance : 50mΩMax.
4.Timing : NON-SHORTING
5.Operating Mode :
* SELF-LOCK
* NON-LOCK
6.Operating Force : 300±100gf
7.Operating Life : 10,000cycles
