4283

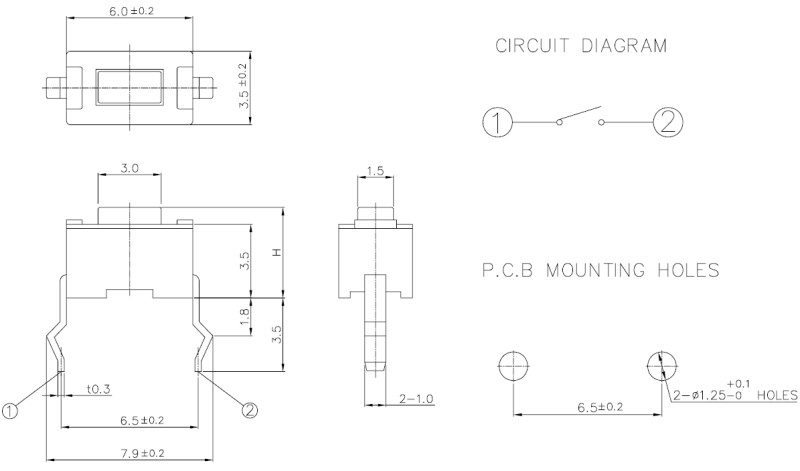

Typical Specifications

1.Rating : DC30V 0.1A
2.Circuit : 4C – 2P
3.Contact Resistance : 30mΩMax.
4.Timing : SHORTING or NON-SHORTING
5.Operating Mode :
* SELF-LOCK
* NON-LOCK
6.Storke :
*FULL : 2.5mm
*LOCK : 1.5mm
7.Operating Force : 200±80gf
